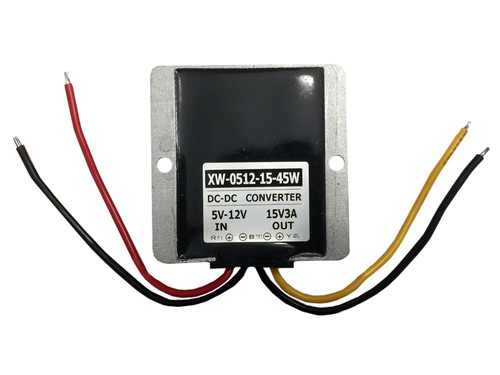

Do your LED's or HID's flicker due to low power voltage? Use this DC to DC power booster to increase 6V DRL to 15V. Can be used with any LED or HID headlight conversion kit where full voltage is required but only 6V is available in DRL mode. Can also be setup for H/L systems where high beam or low beam is DRL. Connection diagram photo shows you how to connect the voltage booster to an H13 LED bulbs with high beam DRL's. If you vehicle's high beam DRL's get only 6V from the vehicle during daytime, then you need to boost the voltage to a min of 8V for most LED headlight kits to work properly. There are some kits that will operate at 6V. Voltage booster boosts the power to 15V, all the time, enabling high beams to work properly in DRL mode. Low beam connection bypasses the voltage booster because it gets full voltage from the vehicle's power harness when lights are turned ON.
Power: 45W
Input voltage: 5V-12V DC
Output voltage: 15V DC / 3 Amps
Connection: Bare Wire Line In +/- (6V), Bare Wire Line Out +/- (15V)
